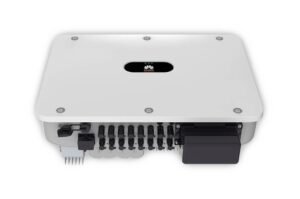

Huawei sun2000 50ktl m1 inverter

The Huawei SUN2000-50KTL-M1 combines efficiency with ease of use. As an indispensable component of the PV system, the inverter is designed to convert direct current from the solar cells into alternating current. In this form, it can be used or fed into the grid.

3-phase inverter with 55,000VA power
4 independent MPP trackers
Efficiency up to 98.5%
Compatible with module optimizer MERC-1100W-P, MERC-1300W-P
Communication via 2G, 3G, 4G, Ethernet (with optional dongle), RS485, AC & DC-MBUS
Free system monitoring with FusionSolar
RS485 for Smart Power Sensor & SmartLogger
Integrated AC and DC overvoltage protection TYPE II
Integrated PID recovery
intelligent air cooling
Protection class IP66
Higher yield: Max. Efficiency 98.5%
Simple and easy: only 49 kg
Safe and reliable: Arc detection

Huawei SUN2000-50KTL-M1 – General Data

Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: 0 – 4.000 m (Leistungsminderung > 2.000 m)
Kühlung: intelligente Luftkühlung
Anzeige: LED – Anzeige, Bluetooth + APP
Kommunikation: RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Gewicht (inkl. Befestigungswinkel): 49 kg
Abmessungen (inkl. Befestigungswinkel): 640 x 530 x 270 mm
Schutzart: IP66
Energieverbrauch nachts: < 5,5 W

Huawei SUN2000-50KTL-M1 – Input (DC)

Max. Input voltage1: 1,100 V
Operating voltage range2: 200 V ~ 1,000 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. Input current per MPPT: 30 A
Max. Short-circuit current: 40 A
Number of MPP trackers: 4
Max. Number of inputs: 8

Huawei SUN2000-50KTL-M1 – protection and function

DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
DC insulation resistance detection: Yes
Arc detection: Yes
Ripple control receiver inputs: Yes
Integrated PID recovery.3: Yes

Huawei SUN2000-50KTL-M1 – Module Optimizer

DC MBUS compatible optimizer: MERC-1100W-P, MERC-1300W-P

Huawei SUN2000-50KTL-M1 – Standards Compliance (others available on request)

Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, EN 50503, IEC 62116, IEC 60068, IEC 61683
Mains connection standards: IEC61727, VDE-AR-N-4105, VDE 4110, VDE 0126-1-1, BDEW, G59/3, UTE C15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, DEWA
